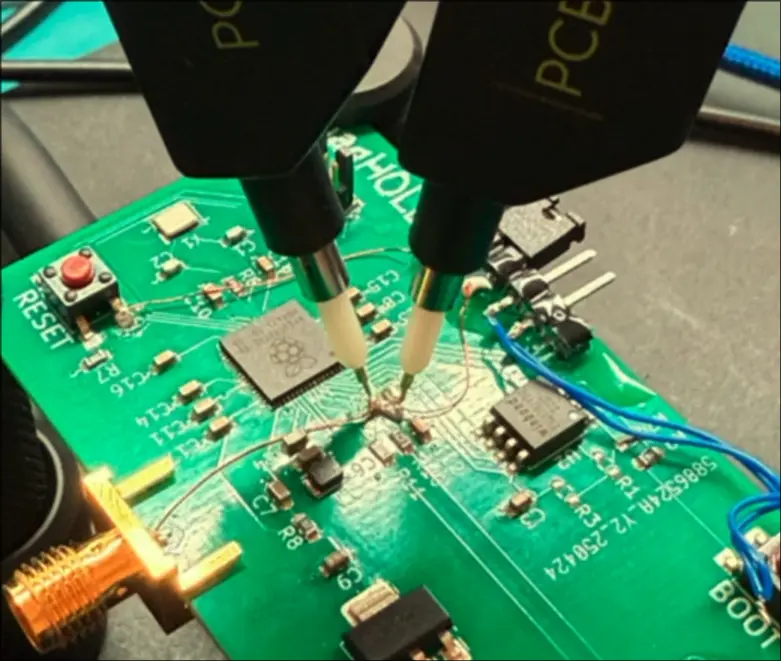

A Circuit Characterization technique that involves using Shunt Resistors and Current Probes to measure the current at different points of a circuit to visualize the Circuit Trace.
Ideas
- Look for common patterns like repeating currents (indicates loops)
- Look for dips or rises (pulling more or less power)
