Datapath

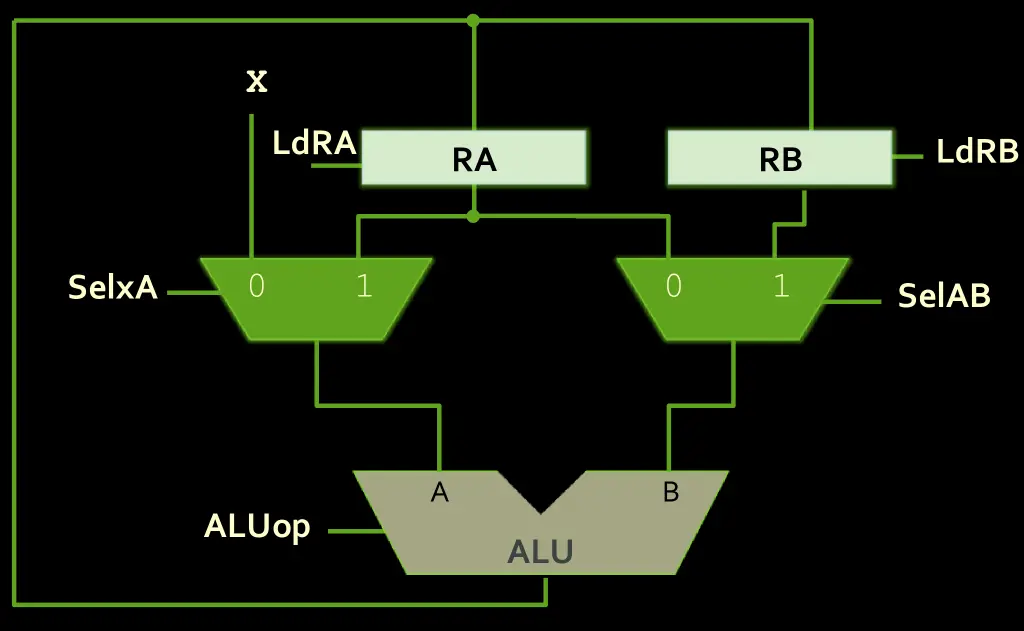

This is where all data computations take place. Contains:

• Register
• ALU
• Wires
• MUXes

Datapath Example

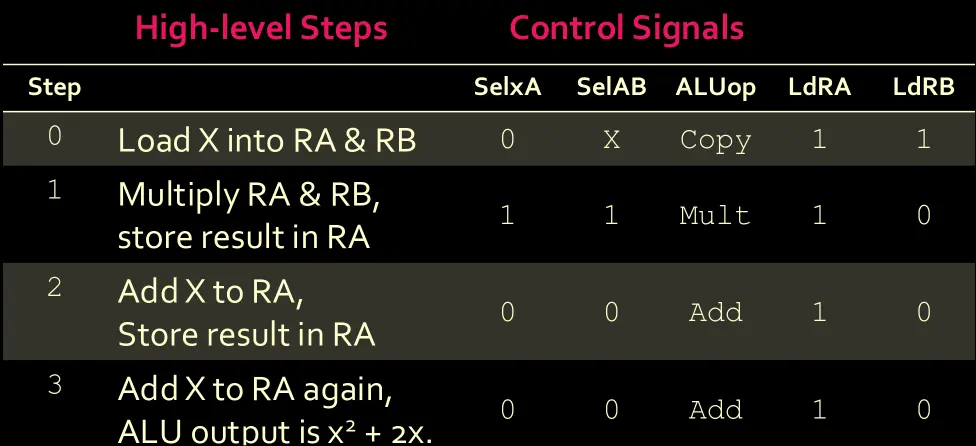

Examples of some operations and the state of the MUXes required for each: The Control Unit will set these muxes
