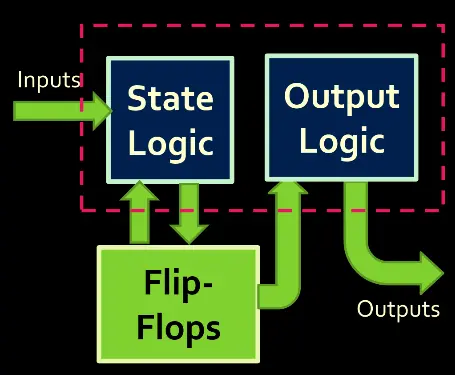

A FSM wherein the output depends soley on the current state (often saved within Flip-Flop).
Moore machines are more commonly used in practice.

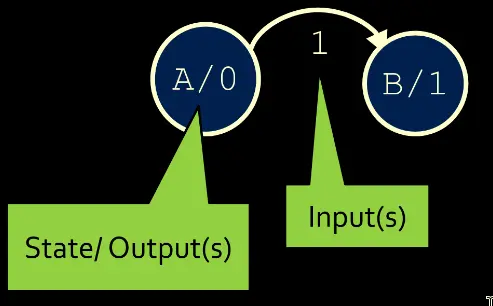

Circuit Diagram Labels
Pros
- Simpler than Mealy Machine
- Always a flip-flop between input and output
Cons
- May need more states than Mealy Machine
- Takes atleast one cycle to respond to input
