Booth Multiplier

A Multiplier that follows Booth’s Algorithm to simplify multiplications, making them faster.

Algorithm

1. For multiplicants $A$ and $B$ being bytes with length $n$
2. With product being $P$, length of $2n$
3. Add an extra zero bit to the right-most side of $A$
4. Repeat for each original bit in A (not the zeroes on the left):
   1. If the last 2 bits of $A$ are the same, do nothing
   2. If the last 2 bits of $A$ are $01$, then add $B$ to highest bits of $P$
   3. If the last 2 bits of $A$ are $10$, then subtract $B$ from highest bits of $P$
   4. Perform Bitwise Right Shift on $P$ and $A$

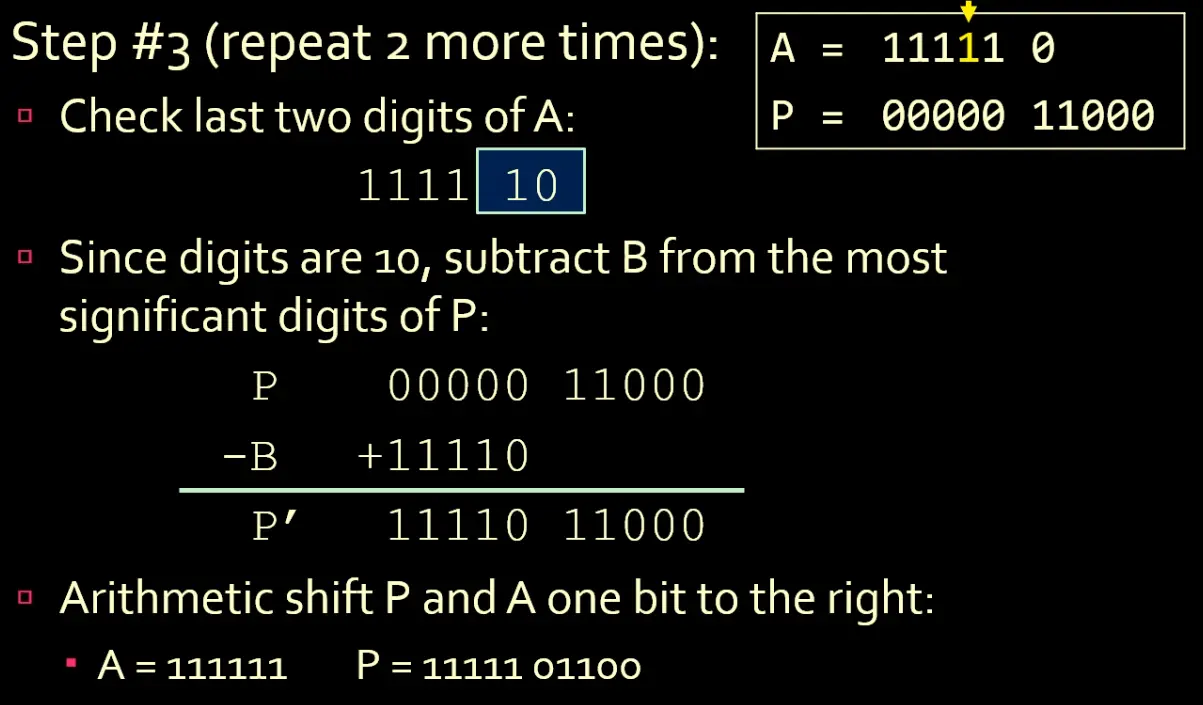

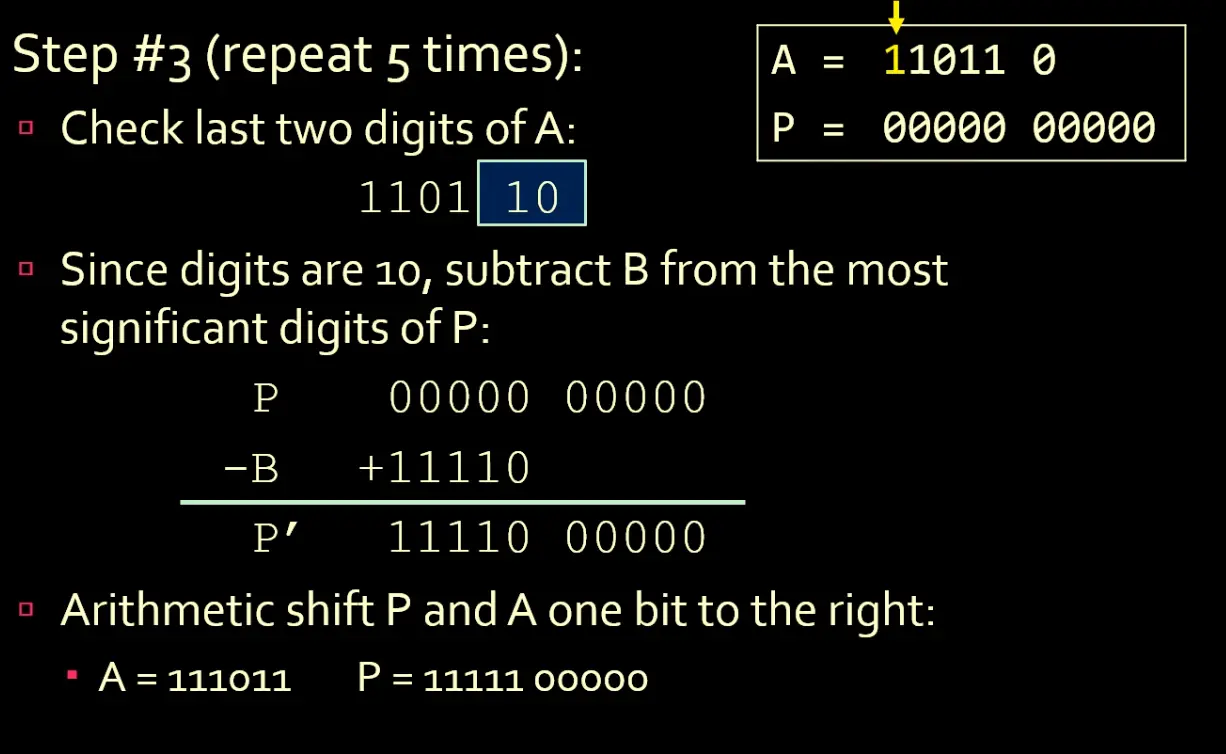

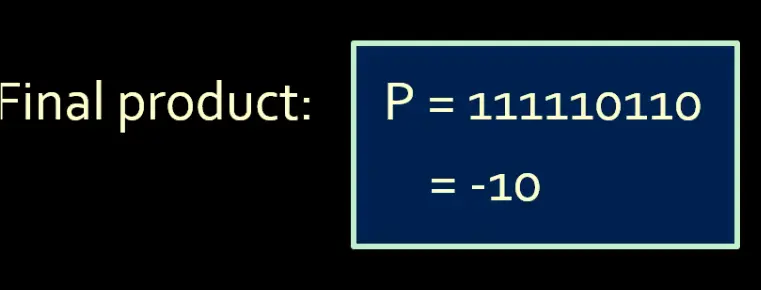

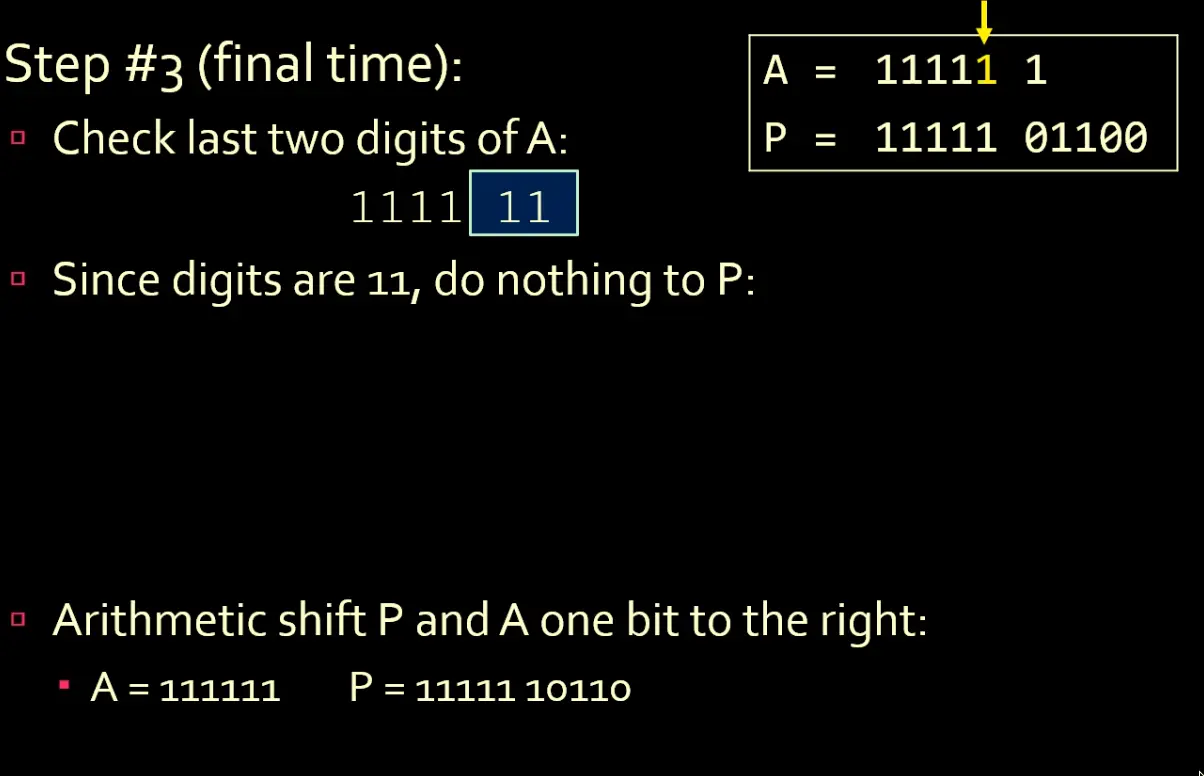

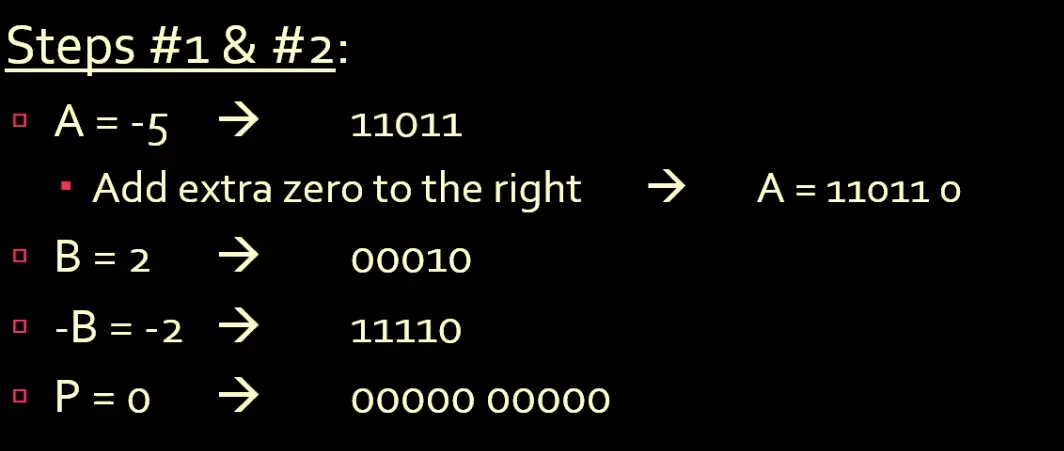

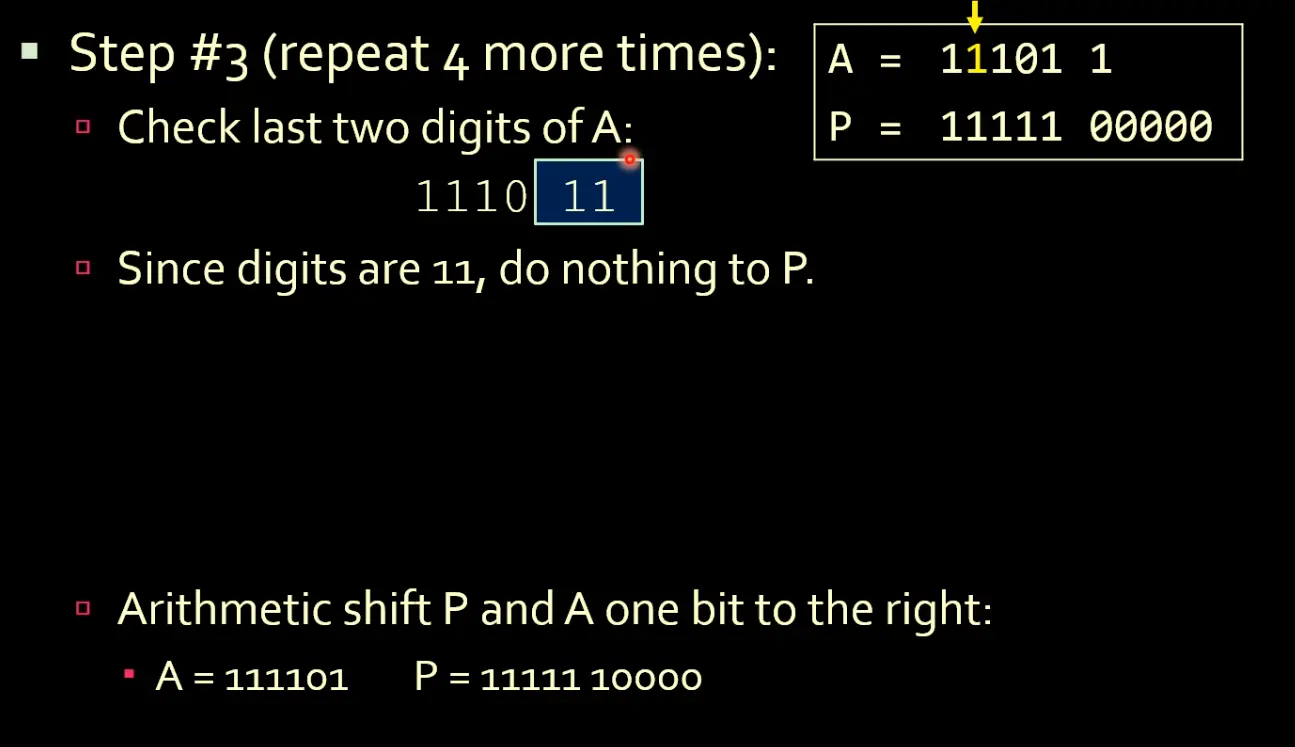

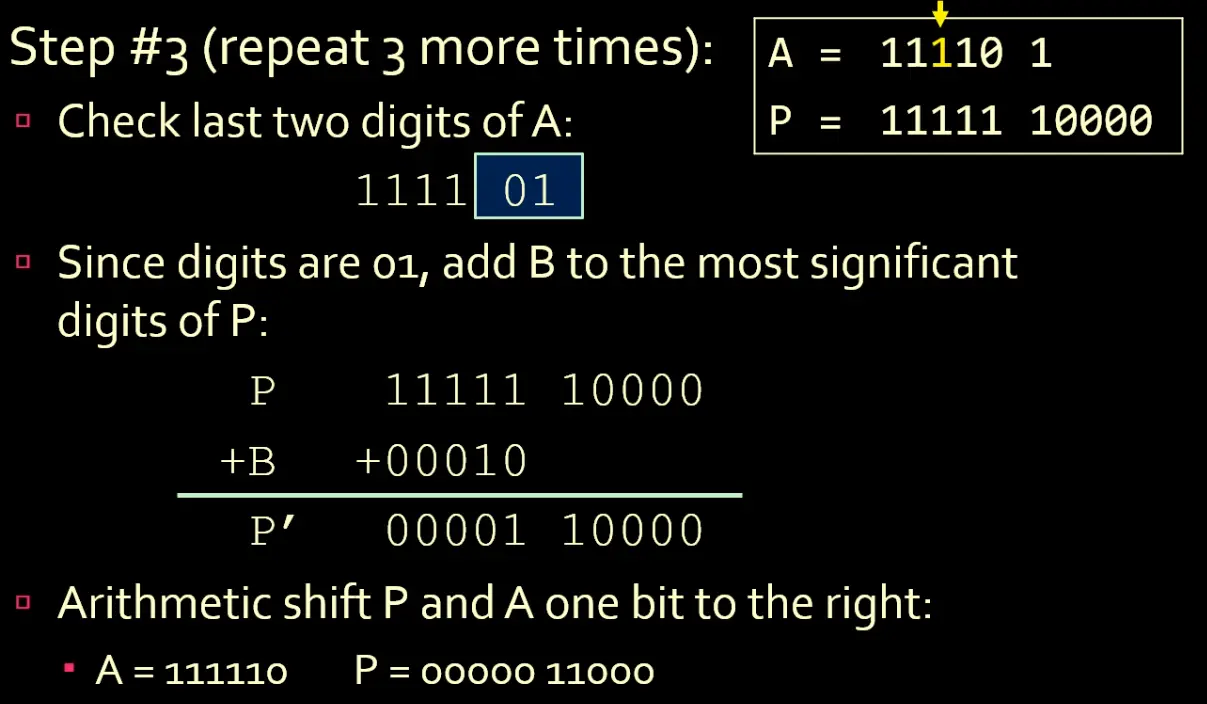

Example
