Carry-Look-Ahead Adder

A N-bit adder, that does not have high propogation delay.

• Uses PG Full Adder We can get:
• $S=P_i\oplus C_i$
• $Carry=G_i+P_i\cdot C_i$

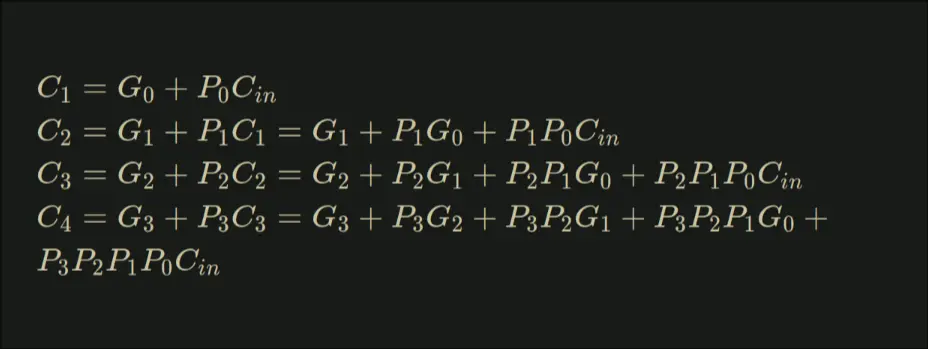

4 Bit Carry Unit

Block Diagram

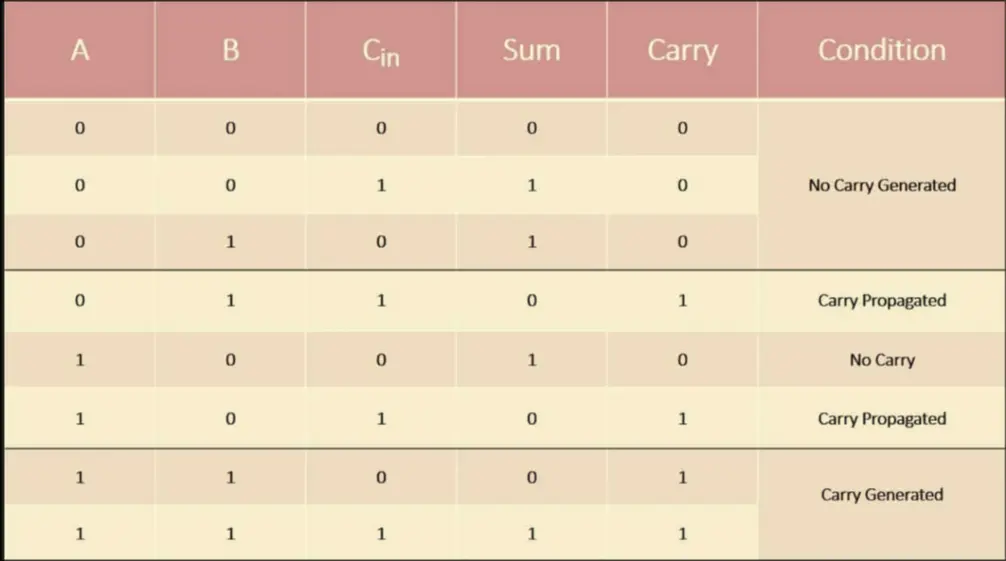

Truth Table
