Verilog

A HDL that is:

• Weakly typed
• Concise
• Deterministic
• C-like System Verilog is the better version of verilog.

Installation/Setup

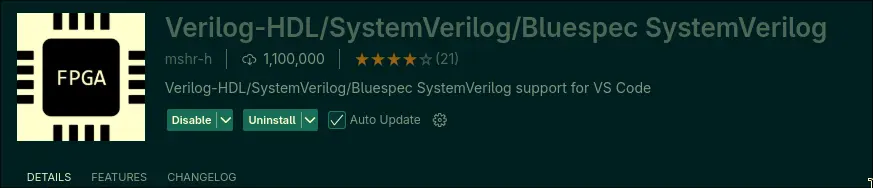

1. With VSCode, install
2. yay -S iverilog
3. yay -S gtkwave

Simulating .v File

1. Write the .v file
2. iverilog -o output.vpp input.v
3. vpp output.vpp
4. gtkwave output.vcd

Concepts

• Verilog Module
• Verilog Datatypes
• Verilog Operators
• Verilog Wire

Boilerplate

module module_name(){
	input A;
	output B;
	assign B = !A;
}
endmodule
