Toggle Flip-Flop

A modified D Flip-Flop that has a XOR Gate. Used to store one bit of information. The $T$ switch flips the currently stored bit.

• $T=0\to Q=Q$
• $T=1\to Q=\overline{Q}$

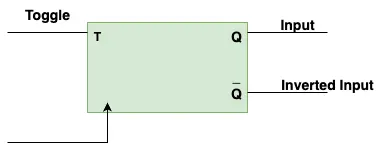

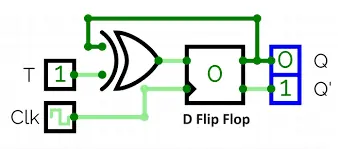

Circuit Diagram
